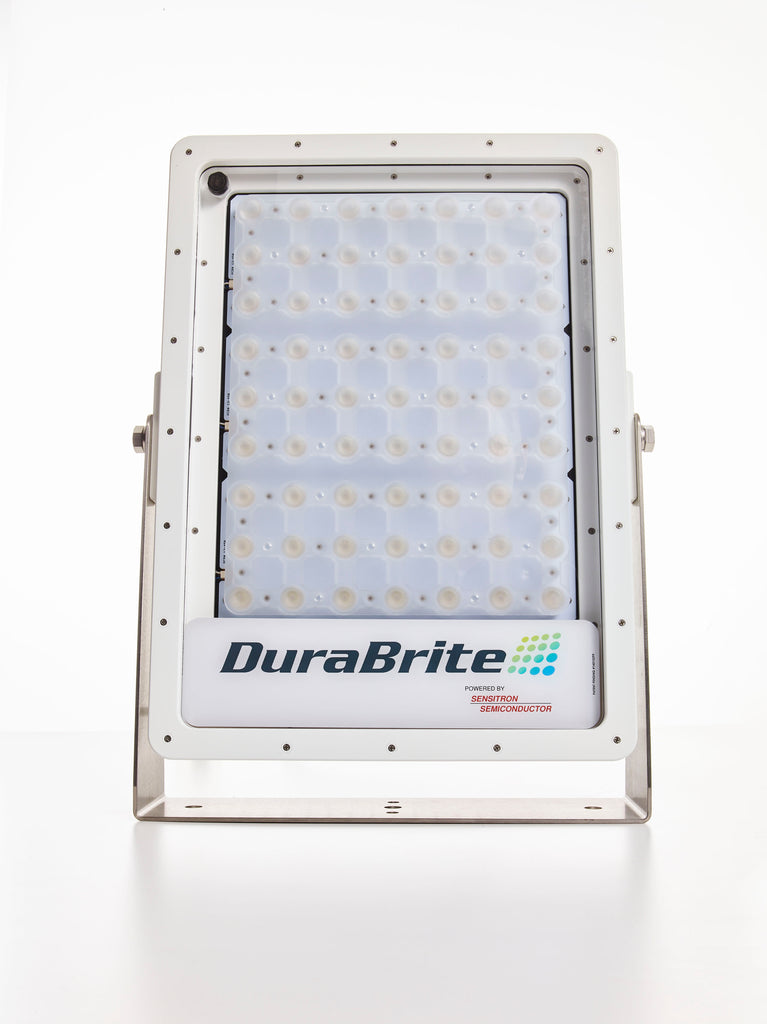

DuraBrite’s Standard Series was the first release in our game-changing LED product line. Originally created for land applications, the buzz surrounding this high optical output, low current draw lighting solution quickly resonated throughout the marine world, as low energy consumption lights are a must for commercial fishing applications.
Leveraging military grade design and state-of-the-art technology, the Standard Series is conceived with native DC 12v/24v power and is available as both a spotlight and a floodlight. Additionally, for AC power applications, a separate AC adapter is available for purchase.
- 35,000 lumens
- Beam angle 76 deg for Flood
- Beam angle 20 deg for Spot
- 5000K cool white optics
- Patented optical circuit
- 180W at 12V, 270W at 24V
- Stainless steel bracket included
- IP68 Certified
- Dimensions: 19.3” x 14.6” x 3.5”
- Black or White exterior
- Designed & Assembled in U.S.A
If you are using the AC/DC converter (aka power supply), you must install a switch on the DC side of the power supply. In other words, you will need a switch to be installed between the light and the power supply. The light switch must be turned on, only after the power supply is already powered. This will prevent a pass-thru surge induced damage that could take place in some electric systems.
If it happens, you will find that the light will only take a low voltage (e.g. 4.5V) instead of 24V and the driver board inside the light has already been damaged. This damage will not be covered by warranty as of August 1st, 2020.
GTIN for Standard Series:
SLM35500D1S0 (Black / Spotlight) - 00816761020009
SLM35504D1S0 (Black / Floodlight) - 00816761020047
SLM35500D1SW (White / Spotlight) - 00816761020108
SLM35504D1SW (White / Floodlight) - 00816761020146
